USB Video Capture Card | VHS, VCR, Hi8 to Digital Converter

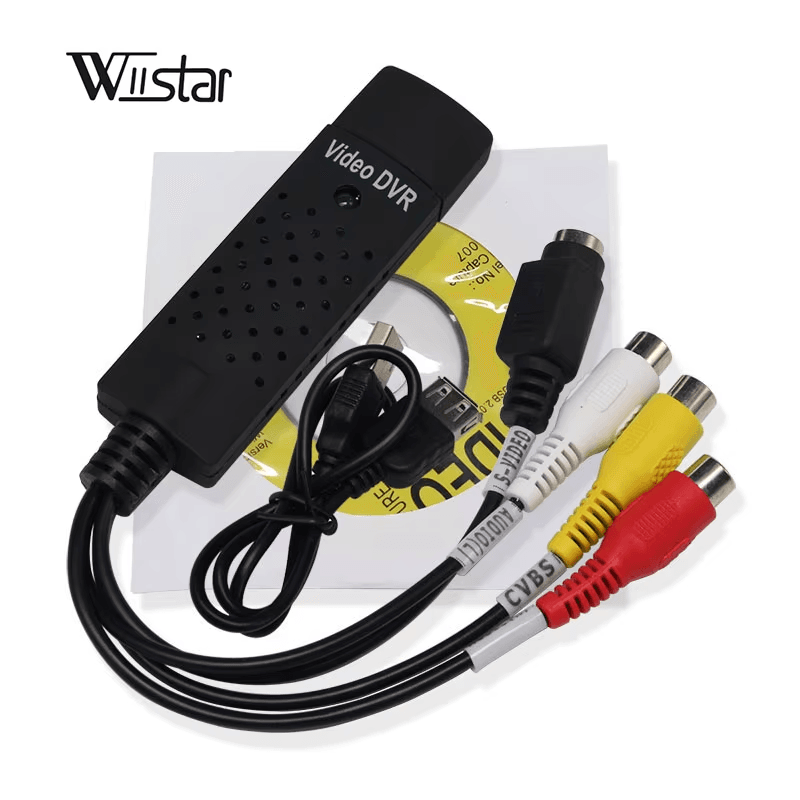

USB Video Capture Card Easy Cap – Convert VHS, VCR, Hi8, and Mini DV to Digital

Feature	Details
Interface	USB 2.0
Supported Video Formats	NTSC, PAL
Resolution	NTSC: 720 x 480 @ 30fps, PAL: 720 x 576 @ 25fps
Compatible Systems	Windows 2000, XP, Vista, 7, 8, 10 (32/64-bit)
Power	USB-powered, no external power needed
Capture Format	DV, MPEG-1, MPEG-2, MPEG-4, SVCD, VCD, DVD, AVI, WMV

Convert Old Video Formats to Digital

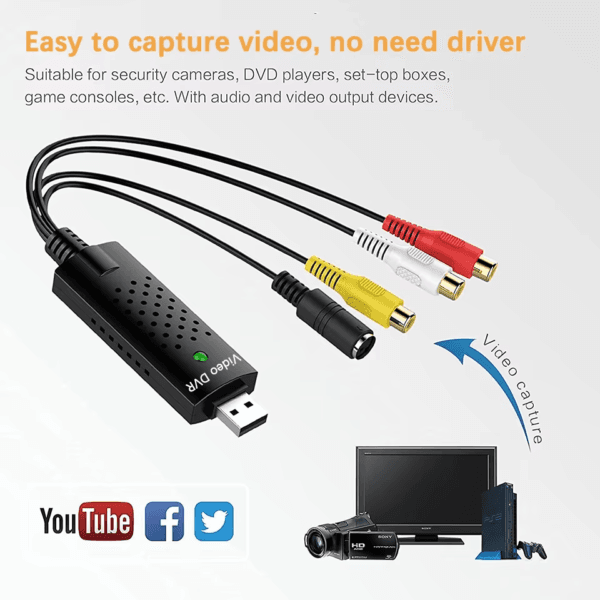

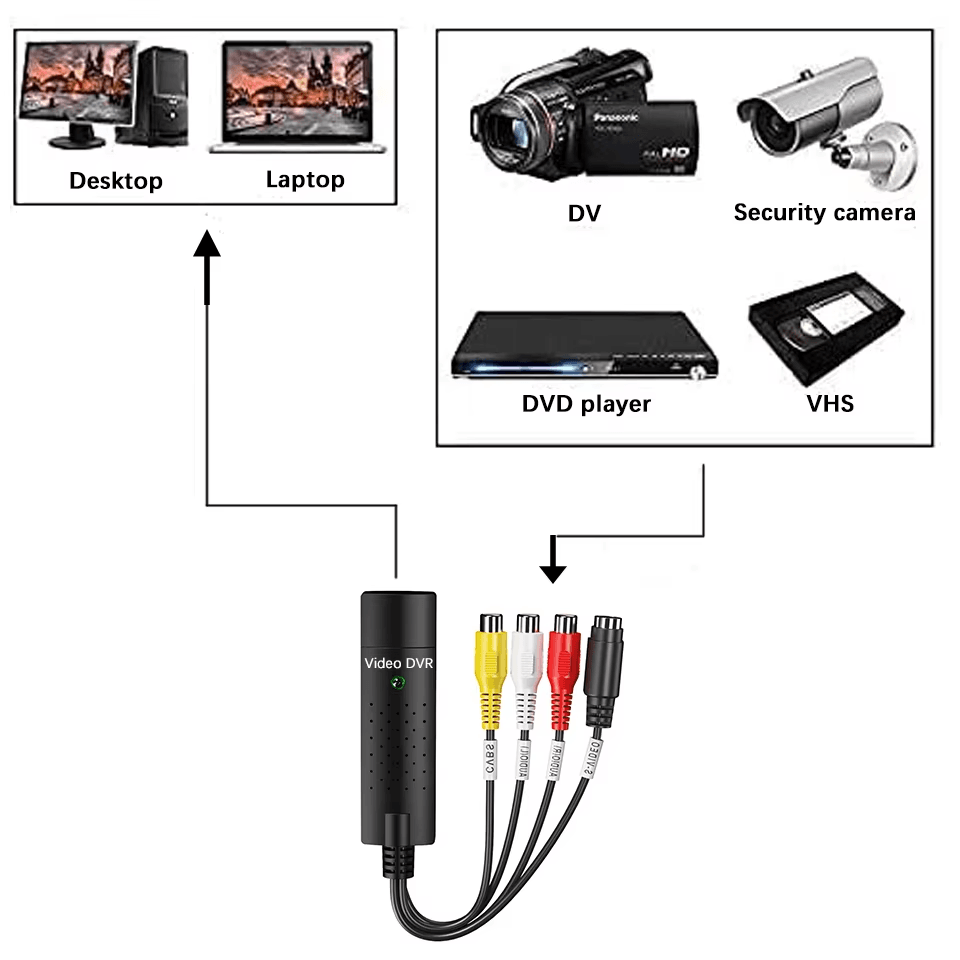

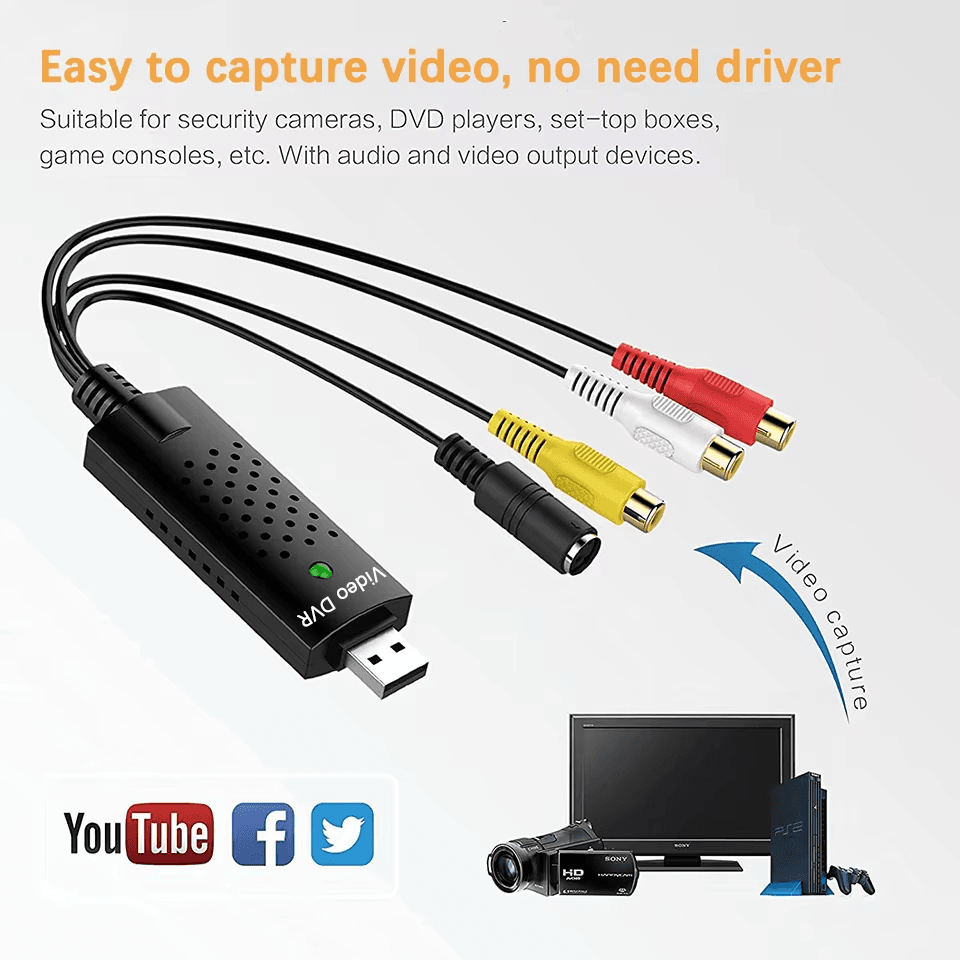

VHS tapes don’t last forever. This USB video capture card makes it easy to convert old home videos to digital files. Connect a VCR, Hi8, Mini DV, or other analog device using RCA or S-video cables. Plug the USB end into a computer, and capture video and audio in real time. No special hardware is needed, just a PC and a bit of storage space.Save footage as DVD, AVI, WMV, or MPEG formats. The capture process runs smoothly, keeping video and audio in sync. No dropped frames, no distorted sound. Works with free software like OBS Studio, PotPlayer, or AMCap. Setup is straightforward. Install the software, connect the device, and start recording.

Easy to Use with Plug-and-Play Setup

There’s no need for an external power supply. This device runs off USB power. Plug it in, and the system detects it. Use it for digitizing home movies, recording from camcorders, or even setting up a simple surveillance system with an old video camera.The USB interface provides stable data transfer. Video quality remains clear, even when capturing older footage. No lag, no delay. Works on Windows systems from XP to 10. Just install the drivers, and it’s ready to use.

Compact and Portable

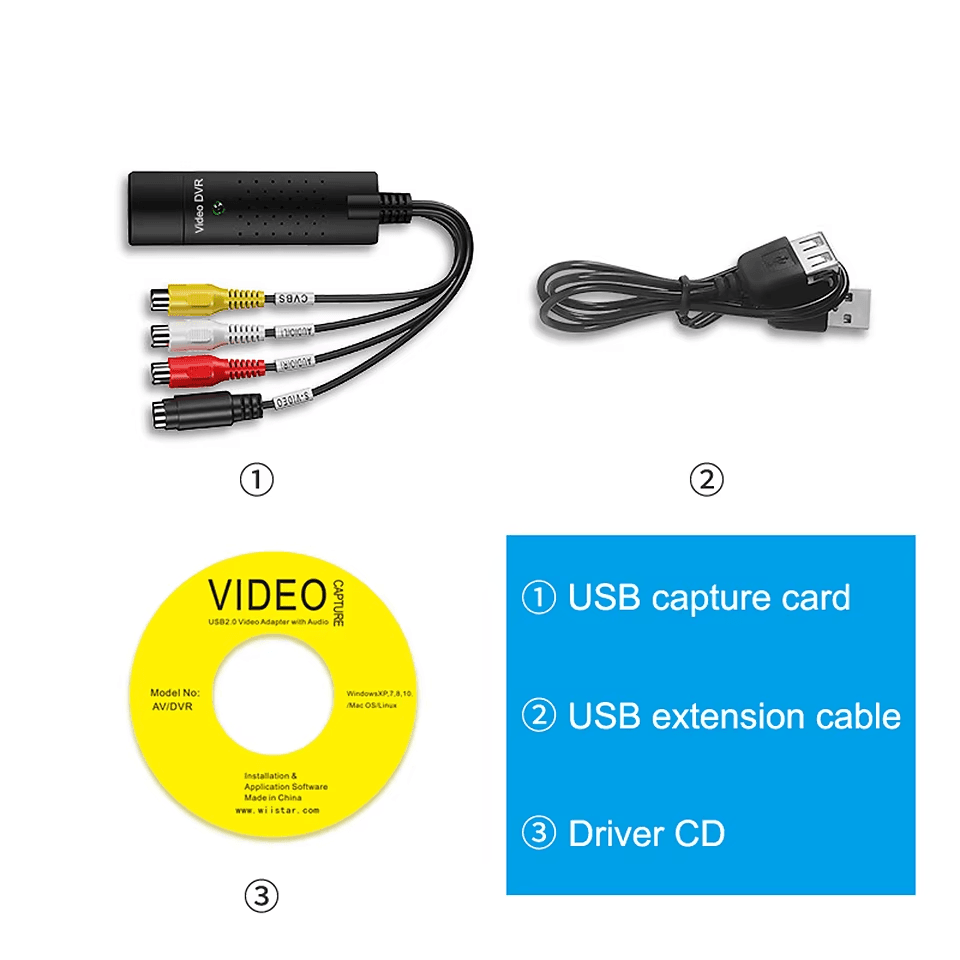

This capture card is small enough to fit in a pocket. Take it anywhere and digitize footage on the go. The included USB extension cable adds flexibility, letting you position devices comfortably.It’s a simple setup: one end connects to the video source, the other goes to the computer. No need for complicated configurations. The device does what it’s supposed to do—converting analog signals into digital files without extra steps.

Reliable Performance with Broad Compatibility

This device supports both NTSC and PAL video formats, handling different regional standards with ease. It captures at standard resolutions—720x480 for NTSC and 720x576 for PAL—ensuring quality playback.The updated chipset ensures stable performance. The card no longer uses the discontinued UTV007 chip, but functionality remains the same. Just install the drivers, and it works as expected.

Frequently Asked Questions

• Does this work on Mac? No, this device is designed for Windows systems only.
• Can I use this to live stream? Yes, with the right software like OBS Studio.

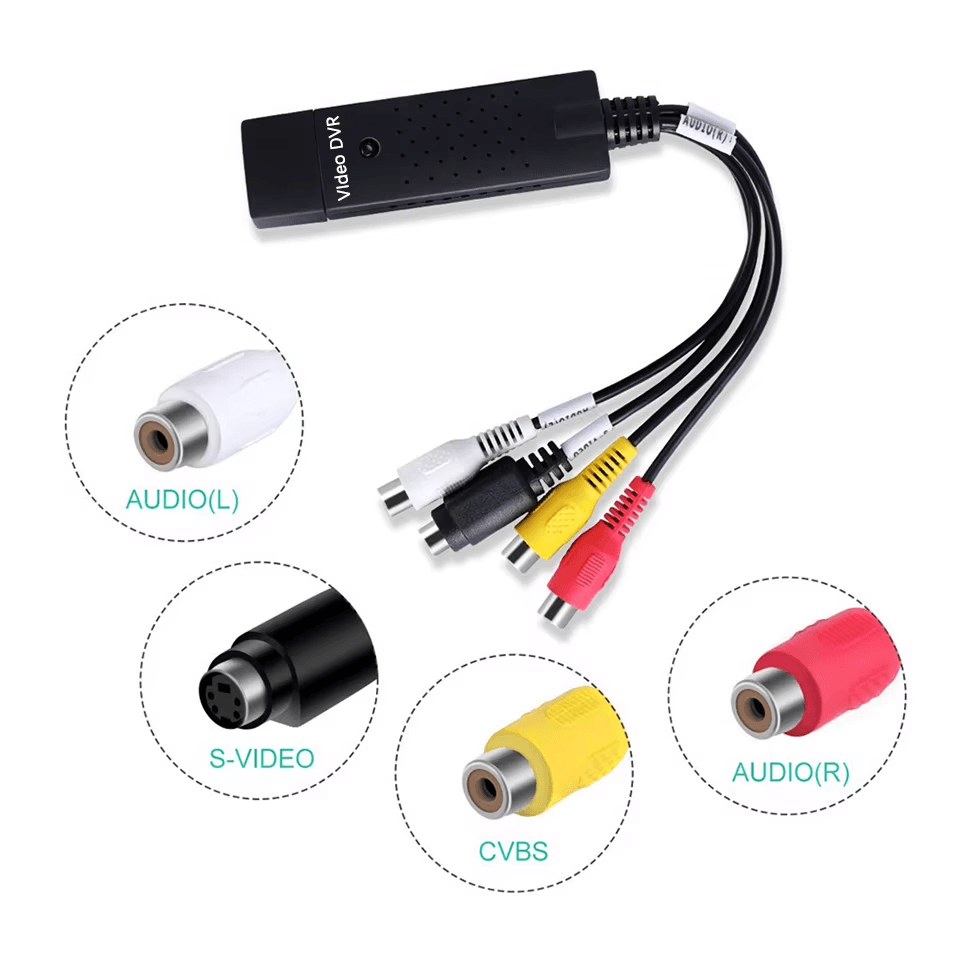

• What cables do I need? RCA or S-video cables to connect the video source.
• Does it come with software? No, but free options like OBS and AMCap work well.
• Will it work with all VCRs? Most standard VCRs with RCA or S-video outputs will work.
• Can I use this to capture gameplay? No, this is for analog video sources, not HDMI or HD gaming consoles.
